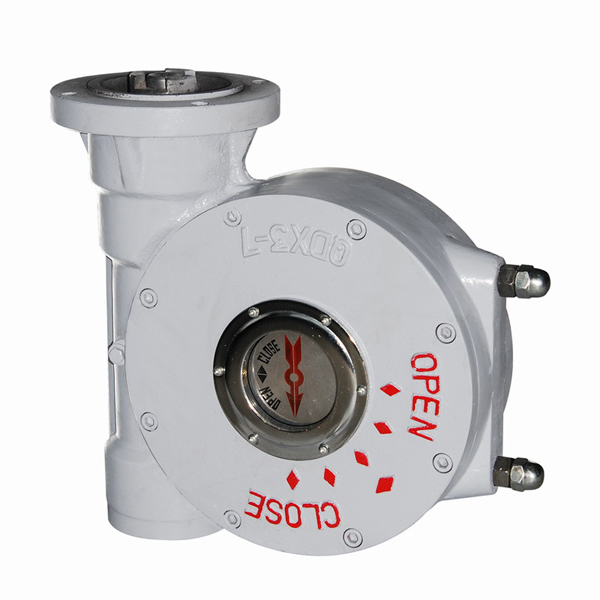

Part-Turn Valve Gearbox

  • Category:Part-Turn Valve Gearbox
  • Views:7454
  • Material:WCB,QT450,CF8M,LCB,LC1
  • Torque:Up to 500,000Nm
  • Ratio:Up to 5000:1
  • Flange:ISO5211
  • Product Manual:Worm Gearbox,Part-Turn,Ball Valve Actuator,Butterfly Valve Actuator
BASIC INFO

Quarter turn gearbox, suit to be used on ball valves,butterfly valves,plug valves etc.The housing made by precise casting, and the gear boxes have fresh pattern and nice appearance.it's transmitted by worm gear and worm, and the worm gear with self-locking,also by using tapered roller bearing,the gear box can be operated more flexibly and have higher efficience.Stem nut can be uni-body or separated just according to customers' requirement.The mounting flange adapts to IS05211 international standard. So it's can be more convenient to match the valves.The Protection grade can be IP65, for some special environment, it also can be IP68.


Characteristic Services:


1). OEM Service.
2). Design according to the customers' requirements.
3). More years' professional experience in research, manufacturing


All the products can be produced by your own design or samples with good quality.
SUCCKEY: your sincerely and powerful supplier of Industrial Gearbox.

Above is just few part of our range of part-turn valve gearbox,for more information,please fell free to contact us!

High Torque Worm Gearbox For Ball ValveWorm Gearbox For Ball ValveWorm Gearbox For Ball Valve
